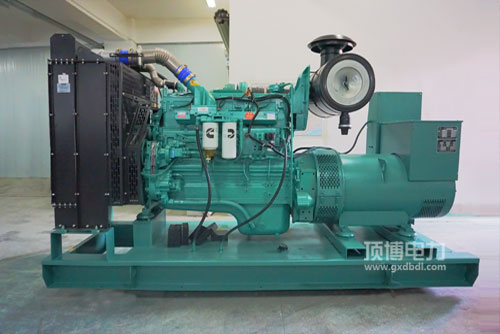

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用起倾向气油经济条件性好: 现代化的气油操作系统软件，才有的STC、ESTC 分级a操作系统软件，特种设计的的活塞环壳体点燃室，高压变压器压喷射气油，全面吸雾，点燃全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用起动因瞬态性良好: 更好的起动因布局开发，相互配合康明斯独特性的EFC机系统，调节gps精度大，崩溃时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用打着机升公率高: 产品 结构设计紧身.外表摆置适当，运作市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50满意中国有非路途3.周期及美洲Tier2. Tier 3排放标准法规标准让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可获得性好， 发起机执行及运营维护日常护理方便快捷，生产损坏后可及时更换。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率规模 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯火力发电用汽车发心理的结构特征：大小小， 解压缩比较高， 格栅板水汽蒸汽加热，利于加载，中国电信车截电源适配器的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机具体型号	经常用到功效(kW)Prime Power	备用电源电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
